Binding and Packing machine ,we are professional .
4 Years
| Ask Lasest Price | |
| Brand Name : | BP MACHINERY |
| Model Number : | PBW580S |
| Certification : | CE |
| Price : | Negotiate (more quantity more cheap ) |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 20 sets per month |
| Delivery Time : | 10-30 days |

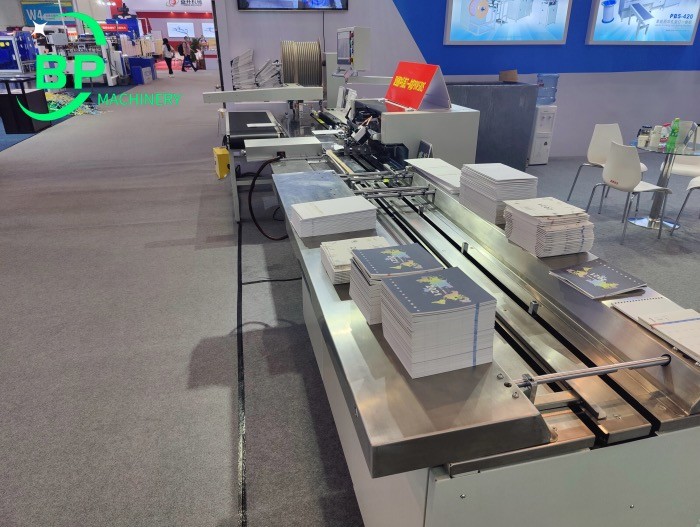

PBW580S is automatic wire o binding machine which now be popular used in notebook and calendar factory , to be used for wire o book ,double wire calendar perforate and wire closing .
PBW580S machine include three function, wire o binding function, paper hole punching function and conveyor auto feed function .Total 3 actions,notebook feeder,punch,then push finger catch punched notebook to wire o binding part,then close wire o,final be deliver to conveyor. Or calendar feeder,punch,then push finger catched calendar to wire bind part,then drop hanger,final be deliver to conveyor.
Notebook :Auto feed → Punching → Hanger → Closing → Delivery Conveyor
Calendar: Auto conveyor feed or manual feed → Punching → Closing → Delivery Conveyor
speed | Up to 1500 production/hour |
| Air pressure | 5-8 kgf |
| Wire o diameter | min 1/4- max3/4 ,special could do 7/8 wire o closing |
| Max size of paper | 580mm x 800mm or 580mm x 420mm (feeding conveyor) |
| Min size of paper | 120mm x 105mm ,special could do A7 size notebook |
| Max punch thickness | 5 times total 15mm |
| Electric power | 3ph 380 |
| Max punch edge size | 580mm |
| Max bind edge size | 580mm |
Machine advantage:
1.It combines auto punching and binding in one machine to save labour cost and improve production effciency
2.One machine could handle notebook,desk calendar,calendar bind and punch work
3.Not only one machine do bind and punch ,could be use seperate do bind or seperate do punch.
4.Auto collect production and could be set in touch screen for numbers books finished then move
5.If customer choose hanger device,could be do straight hanger and auto drop.
6.Complete Punch mould include two small punch moulds,and small punching moulds could change position.
Wire o binding& punching inline machine Application:
1 .Wire o calendar
Machine is popular used in calendar season for oveseas customer ,big calendar could be feeding directly in punching part .If small calendar (non binding side<420mm)
Could be feeding in conveyor .
2 . Desk calendar
Desk calendar also could be punch direclty with cover and paper in punch part for 2 or 3 times ,speed about 1400 calendars / hour .
3.Notebook
Machine design mainly for notebook factory as the market of notebook is big ,also compare calendar ,notebook punching and binding more complex and difficult .
But is easy handle by PBW580S machine , even A7 size ,cover bigger
than inner paper ,all no problem .
Calendar hanger is optional part for calendar factory purchase to used hanger dropping for hanger
Binding tool we have min 1/4 ,and max 7/8 biniding tool .
Punching tool we have common choose
| Hole size | Appearance | punch tool choose |
| 3:1 | Square 4x4 or Round 4.5mm | 3:1 ,Square 4x4 or 5x5 or round 5mm |
| 3:1 | Thumb cutting square 4x4 | 3:1 ,thumb cut square 4x4 or 5x5 |
| 2:1 | Square 5x5 or 6x6 | 2:1 ,Square 5x5 or 6x6 |
| 2:1 | Round hole 6mm | 2:1 ,round hole 6mm |
|
|
