    Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area

    Ask Lasest Price
    Brand Name : BP MACHINERY
    Model Number : TYBP750
    Certification : CE certification
    Price : Negotiate (more quantity more cheap )
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets / month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area

    ​Semi Auto Die Cutting and Hot Foil Stamping Machine TYMP750

    Hot foil stamping machine TYMP750 - Bronzing machine

    Hot foil stamping machine belongs to printing and packaging equipment.
    They are used for hot stamping all kinds of colored aluminum foil and embossing or die cutting different kinds of pictures, clothing ticketing, greeting cards, trade mark, books cover, note book, packaging cartons, paper boxes, paper bags, Cork pad, folders, and other high grade decoration and printing materials, etc. The suitable product materials are including paper, cardboard, plastic (PVC,PP,PE), leather, wood and cork, etc.,So that they are necessary equipment for printing factory, packaging enterprise and Office stationery manufacturer.


    Technical data :

    Product Paramenters
    Model
    TYMB750
    TYMB930
    TYMB1040
    TYMB1100
    TYMB1200
    Max. Area Available
    750*520mm
    930*670mm
    1040*720mm
    1100*800mm
    1200*820mm
    Max. Stamping Area
    665*460mm
    920*665mm
    1020*700mm
    1000*750mm
    1180*800mm
    Skip Range
    1-500mm
    1-665mm
    1-700mm
    1-750mm
    1-800mm
    Foil-Delivered Length
    1-500mm
    1-665mm
    1-700mm
    1-750mm
    1-800mm
    Foil-Feeding Precision
    1mm
    Foil-Delivered Groups
    2
    3
    3
    3
    3
    Skip Frequency
    1-99times
    Working Speed
    25±2times/min
    22±2times/min
    21±2times/min
    20±2times/min
    20±2times/min
    Working Pressure
    150T
    170T
    190T
    220T
    250T
    Temperature Range
    1-170℃
    Electric Power
    7kw
    12kw
    12kw
    13.8kw
    15kw
    Main Motor Power
    2.2kw-6H
    4kw-4H
    4kw-4H
    4kw-4H
    5.5kw-6H
    Net Weight
    1800kg
    3200kg
    3800kg
    5000kg
    5500kg
    Gross Weight
    2000kg
    3400kg
    4000kg
    5200kg
    5800kg
    Dimension
    1900*1450*1950mm
    1800*1900*2150mm
    2100*2100*2300mm
    2200*2000*2000mm
    2300*2040*2060mm
    Voltage
    220/380/415V

    Main structure characteristics:


    • Equipped with imported PLC and servo motor.

    • Main body was made of HT250 high strength cast iron, it has high strength.

    • Single disk electromagnetic clutch is sensitive and reliable.

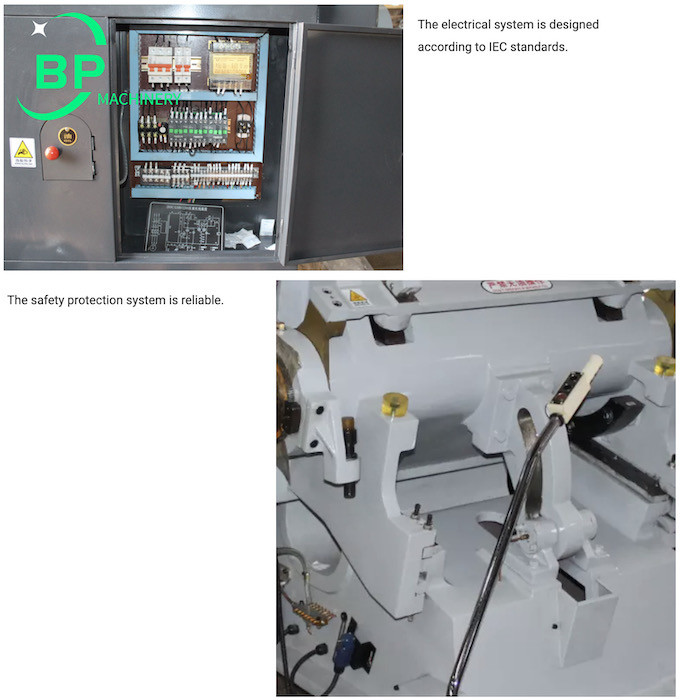

    • The electrical system is designed according IEC standard.

    • The operation height is reasonably designed, the open angle of the pressing plate is big.

    • It has the function of single cutting, continuously cutting. The time delay of the pressing plate can be adjusted.

    • The torque of the gear is great, the pressing pressure is great.

    Application :

    Hot foil stamping

    Hot stamping -Bronzing Foil stamping Hot foil stamping Hot foil stamping


    Machine picture:

    Semi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing areaSemi Auto Die Cutting And Hot Foil Stamping Machine TYMP750 For printing and packing area
